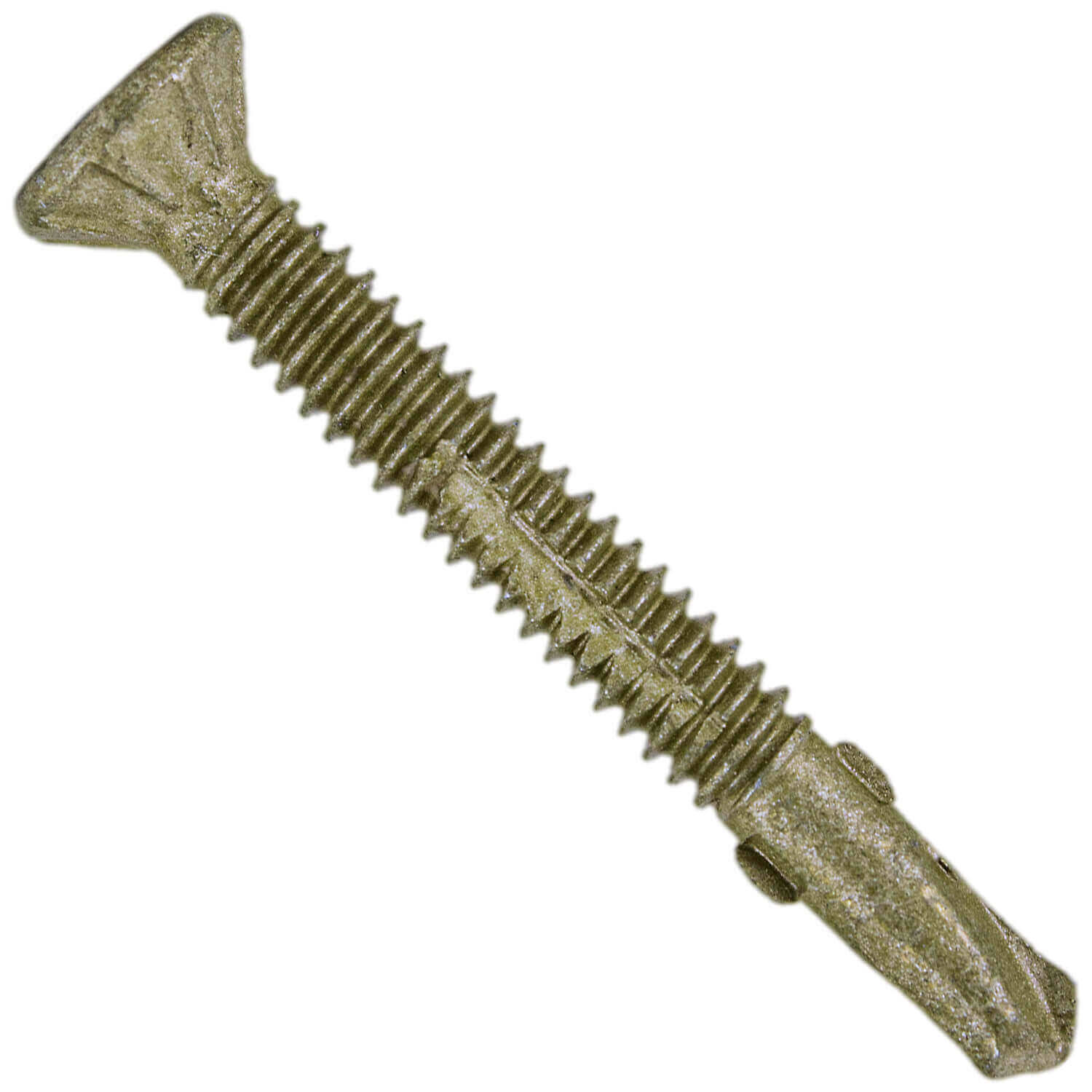

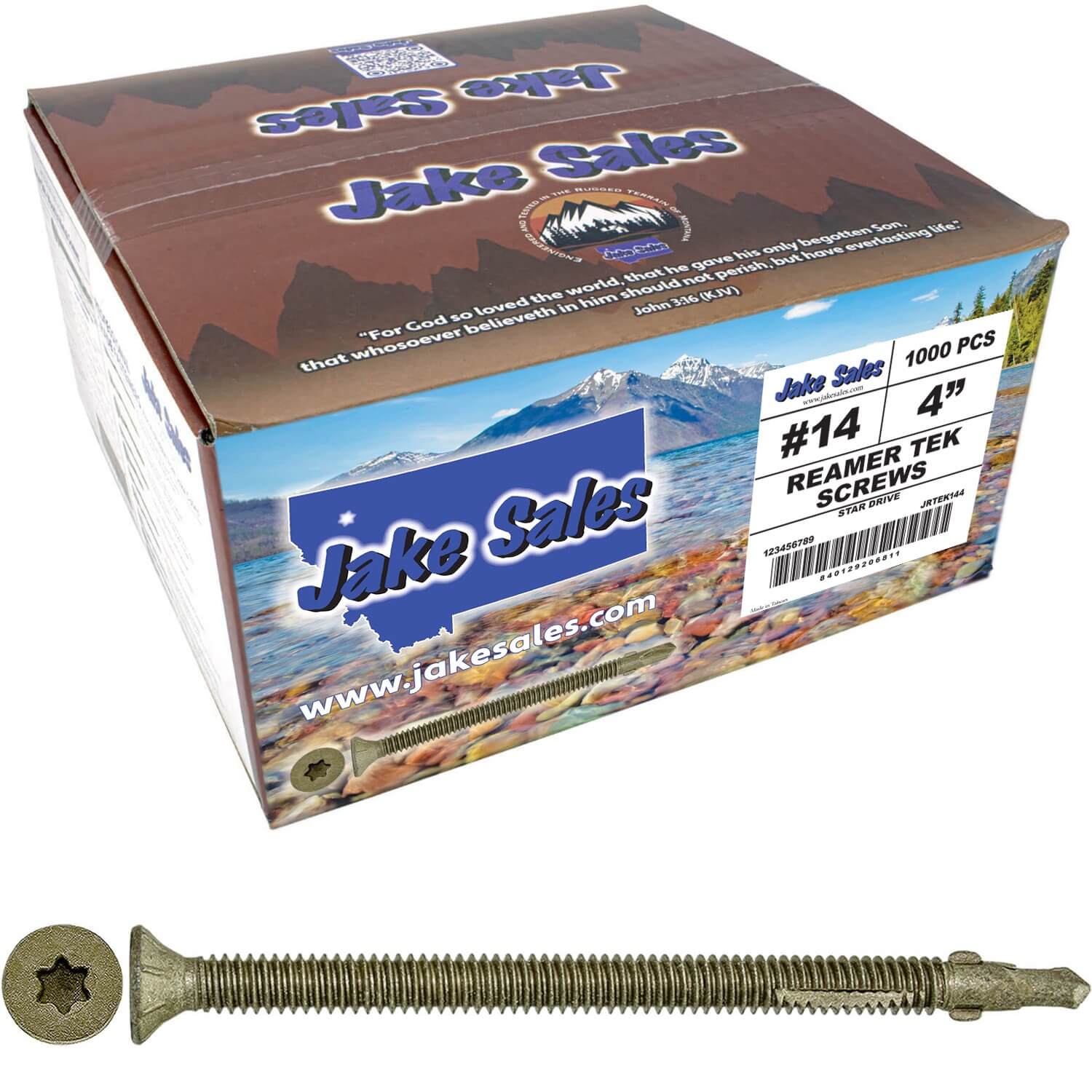

Reamer Tek Torx/Star Head Self-Drilling Wood to Metal Screws - for Flatbeds, Trailers or Fastening Wood to Steel
Reamer Tek Torx/Star Head Self-Drilling Wood to Metal Screws - for Flatbeds, Trailers or Fastening Wood to Steel
Reamer Tek Torx/Star Head Self-Drilling Wood to Metal Screws - for Flatbeds, Trailers or Fastening Wood to Steel
✔Reference Installation Instructions Before Installing - NOT For Welded Seams or Tempered Metal
✔Reamer Tek Screws are for Applications where Wood is Being Fastened to Mild Steel or Aluminum

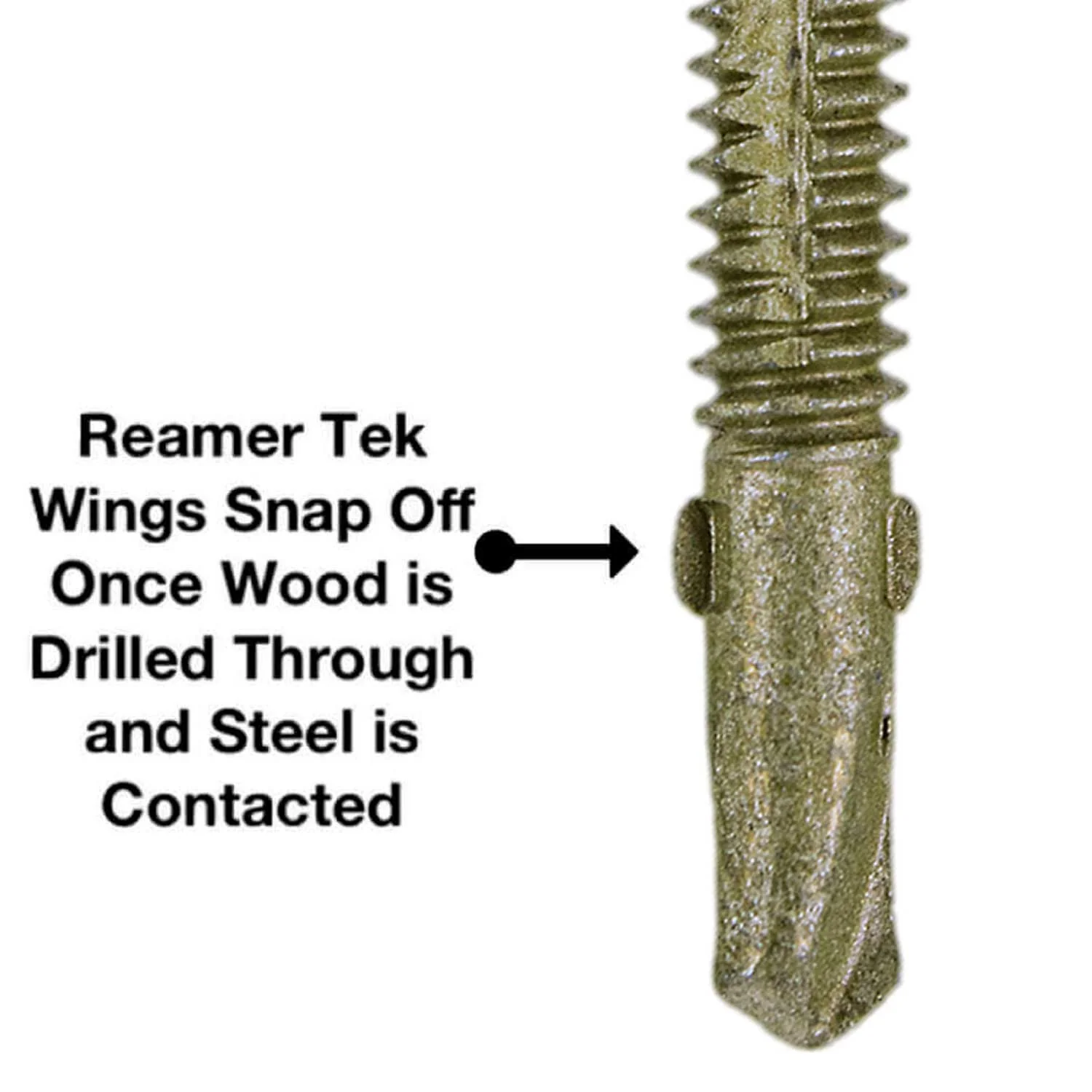

✔Self-Drilling Wings Bore Through Wood and Then Break Off Once They Contact the Metal
✔These Bronze Coated Reamer Tek Screws are ACQ / Treated Lumber Compatible
✔High Quality Treated Steel, Deep, Wide and Sharp Threads Provide Maximum Holding Power
✔Corrosion Resistant, Screws Have Passed 1200 Hours of Salt Spray Testing without Coating Failures
✔Countersinking Head Provides a Neat and Clean Finished Look, Holds Material in Place Securely

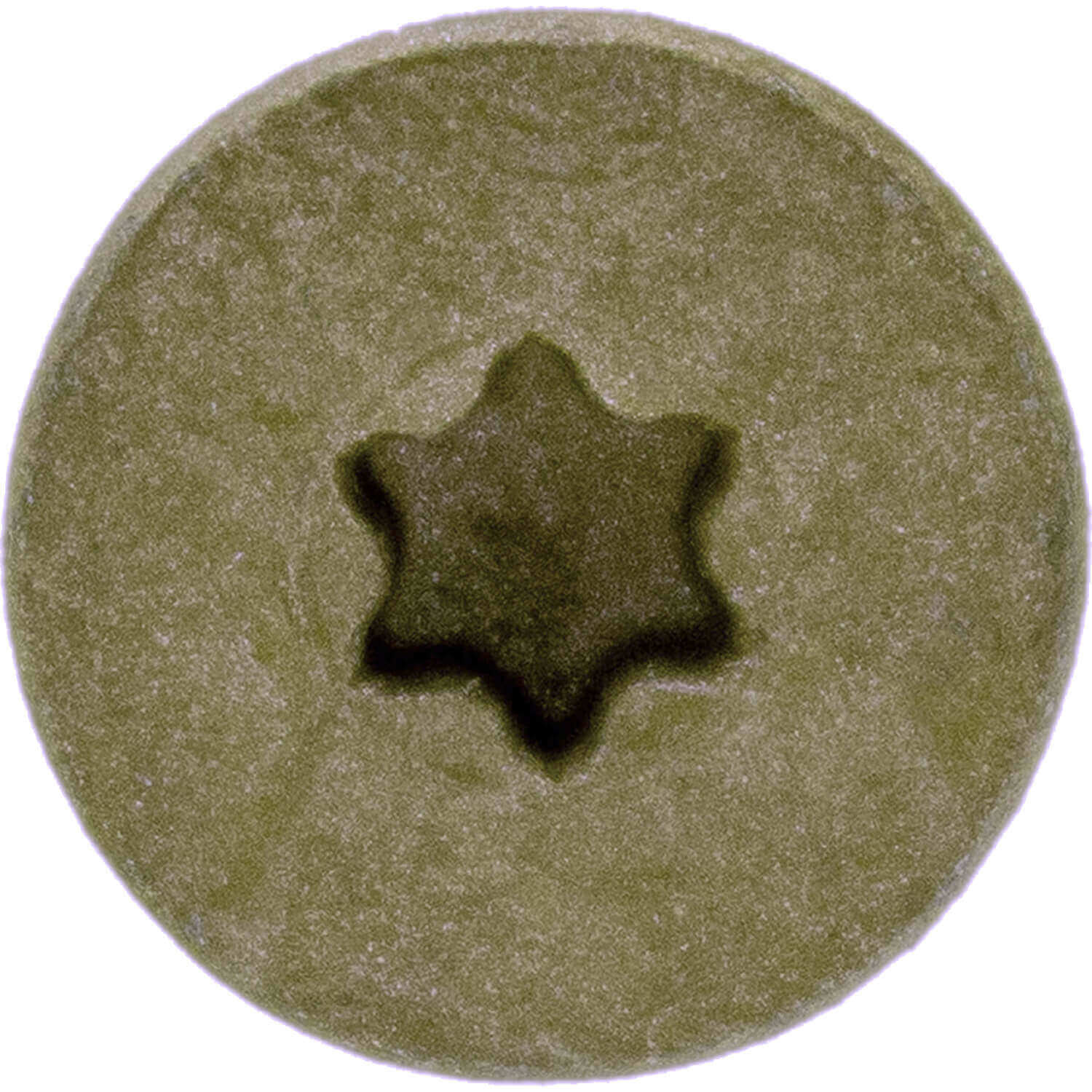

✔Torx/Star Drive Delivers Twice the Torque of Phillips or Square Drive Screws With Less Slippage
✔Deep Torx/Star Drive Head on These Tek Screws Reduce "Cam-out" When Installing Screws
✔Great Tek Screw for Trailer Decks, Truck Beds, Docks, Horse and Utility Trailers and ATV Trailers
Length of Screw Does NOT Represent the Usable Length of Thread / Thickness of Wood - See Installation Instructions or Chart Below for Individual Screw Usage
Reamer Tek Wood to Metal Wood Screws - Consult Chart For Torx Bit Size (Not Included). Install screws at Medium speed (2,000 RPM) Faster speed may damage drill tip. Pre-Drilling During Installation is Normally Not Necessary, However You May need to Pre-Drill if using Tempered Steel or Installing into a Welded Seam.

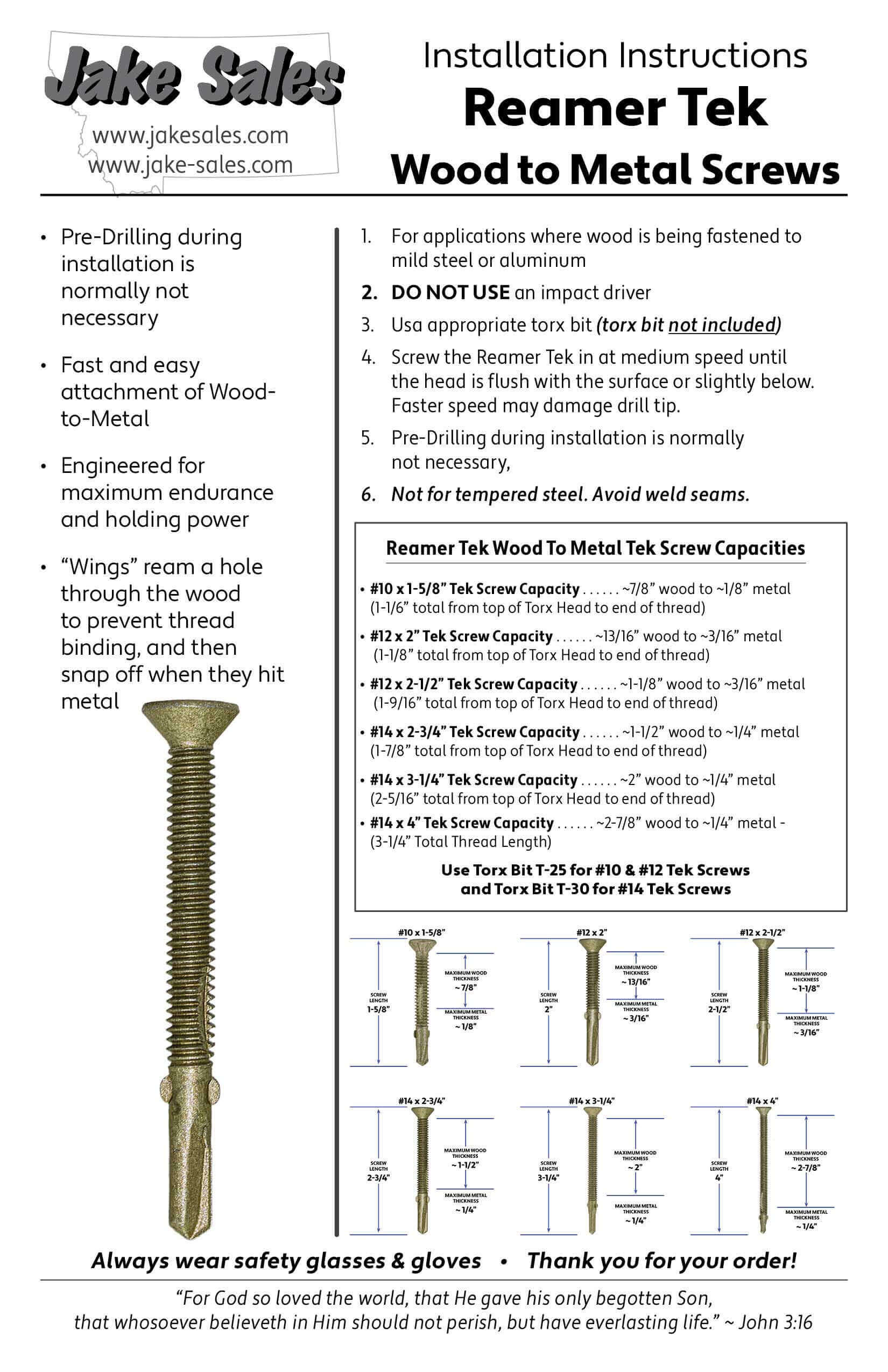

Installation Instructions  Available Here
Torx/Star Drive Bit Available Here
| Screw Size | Max. Wood Thickness | Max Metal Thickness | Torx/Bit Size |
|---|---|---|---|

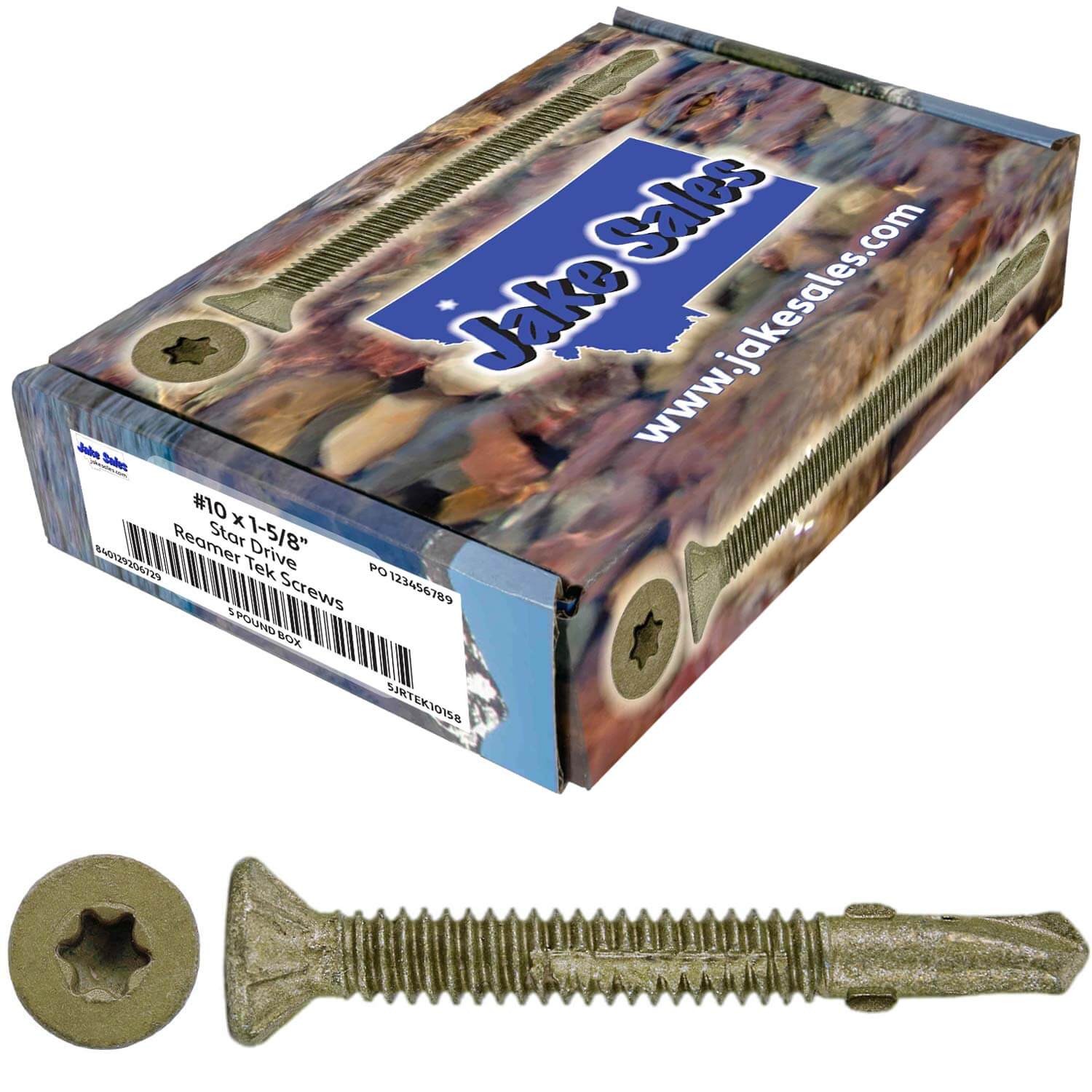

| 10 x 1-5/8" - 1 Pound | 7/8" | 1/8" | T25 |
| 10 x 1-5/8" - 5 Pounds | 7/8" | 1/8" | T25 |

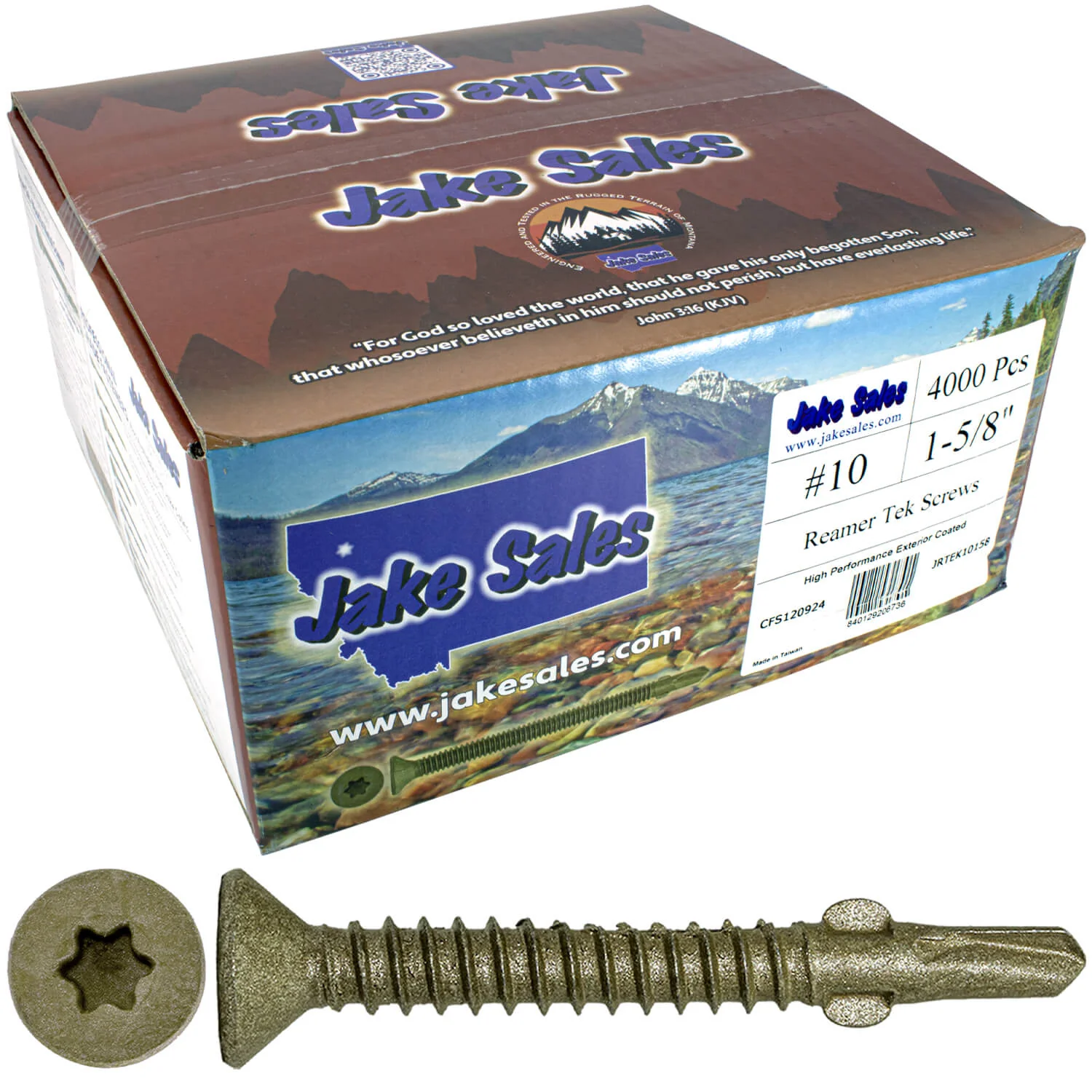

| 10 x 1-5/8" - Full Box | 7/8" | 1/8" | T25 |

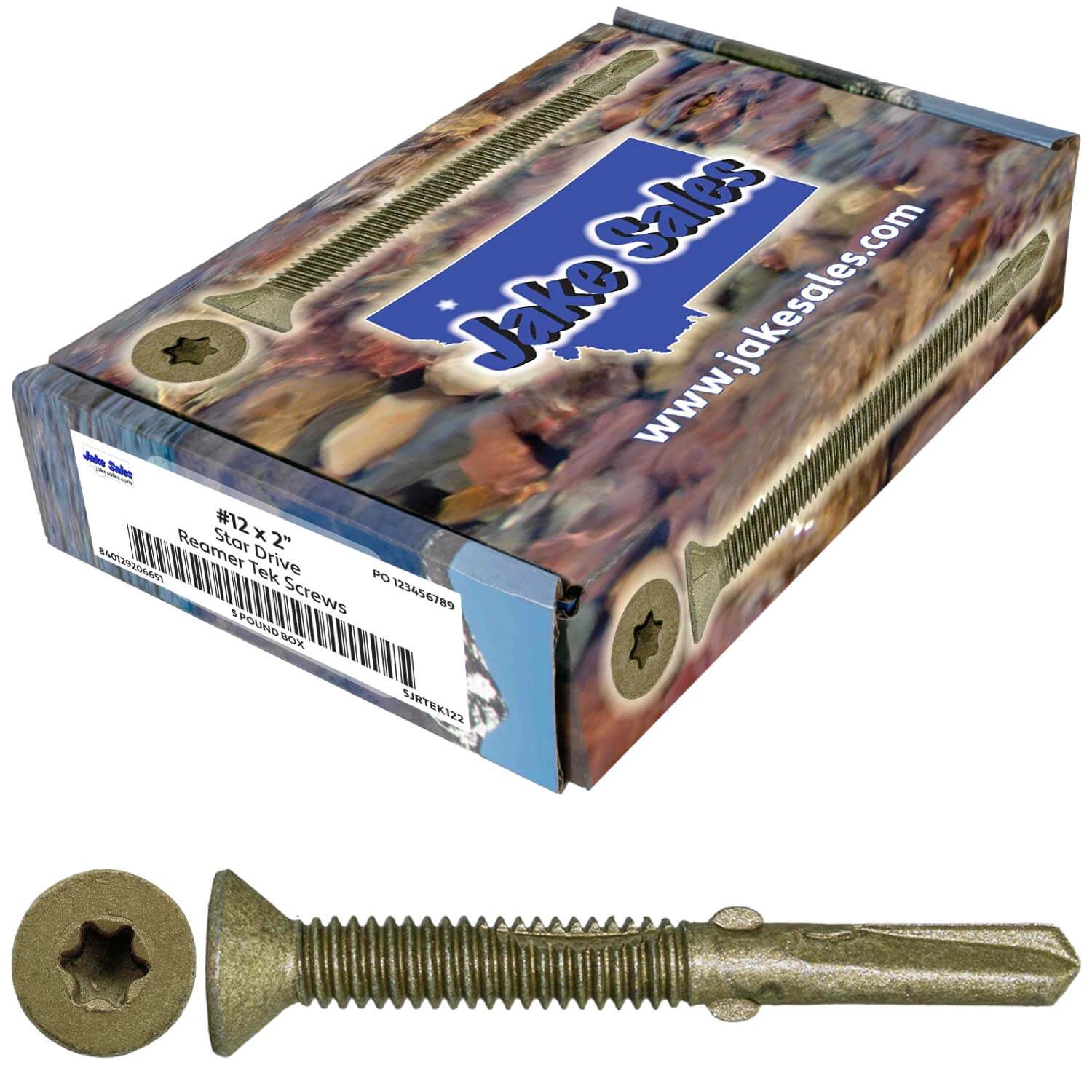

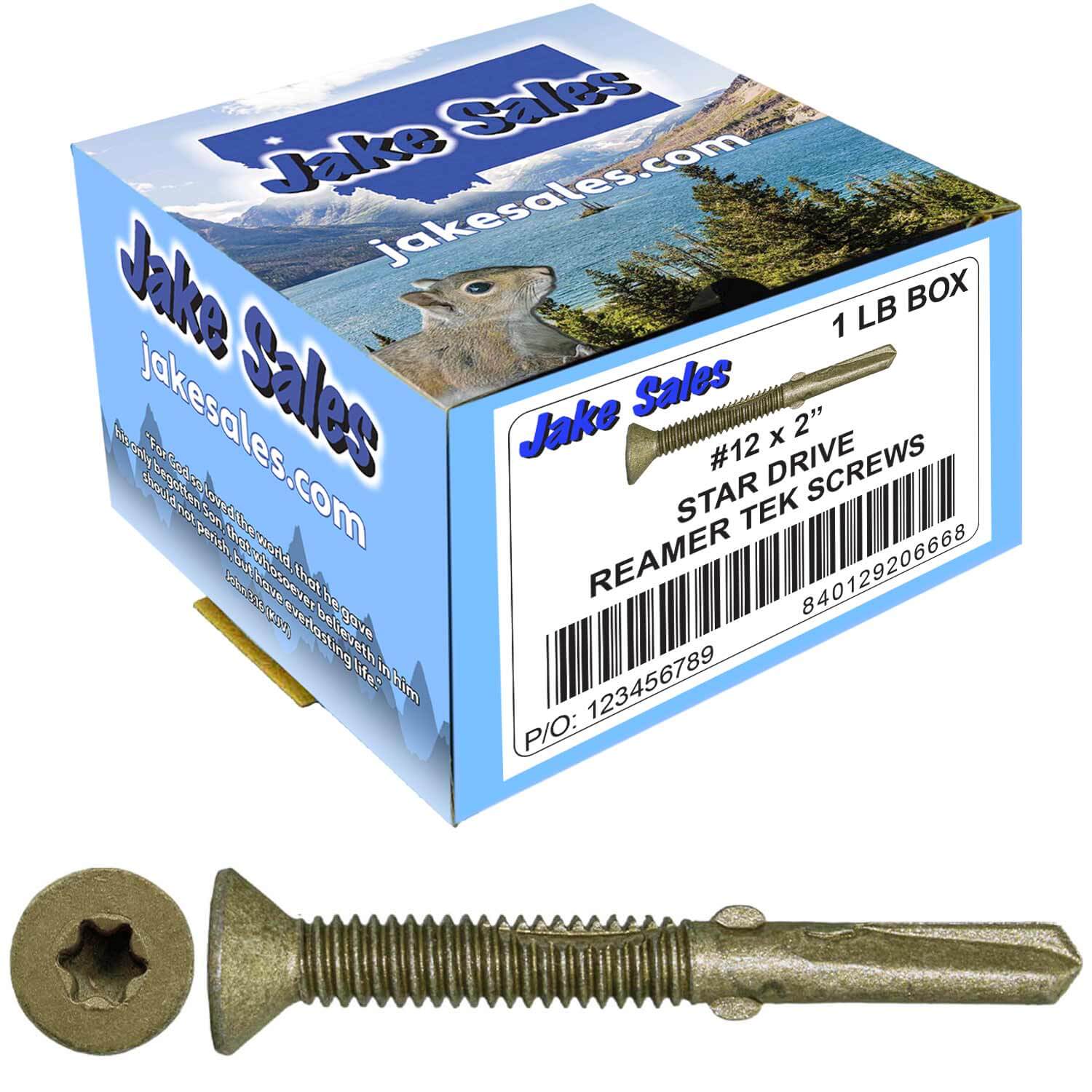

| 12 x 2" - 1 Pound | 13/16" | 3/16" | T30 |
| 12 x 2" - 5 Pounds | 13/16" | 3/16" | T30 |

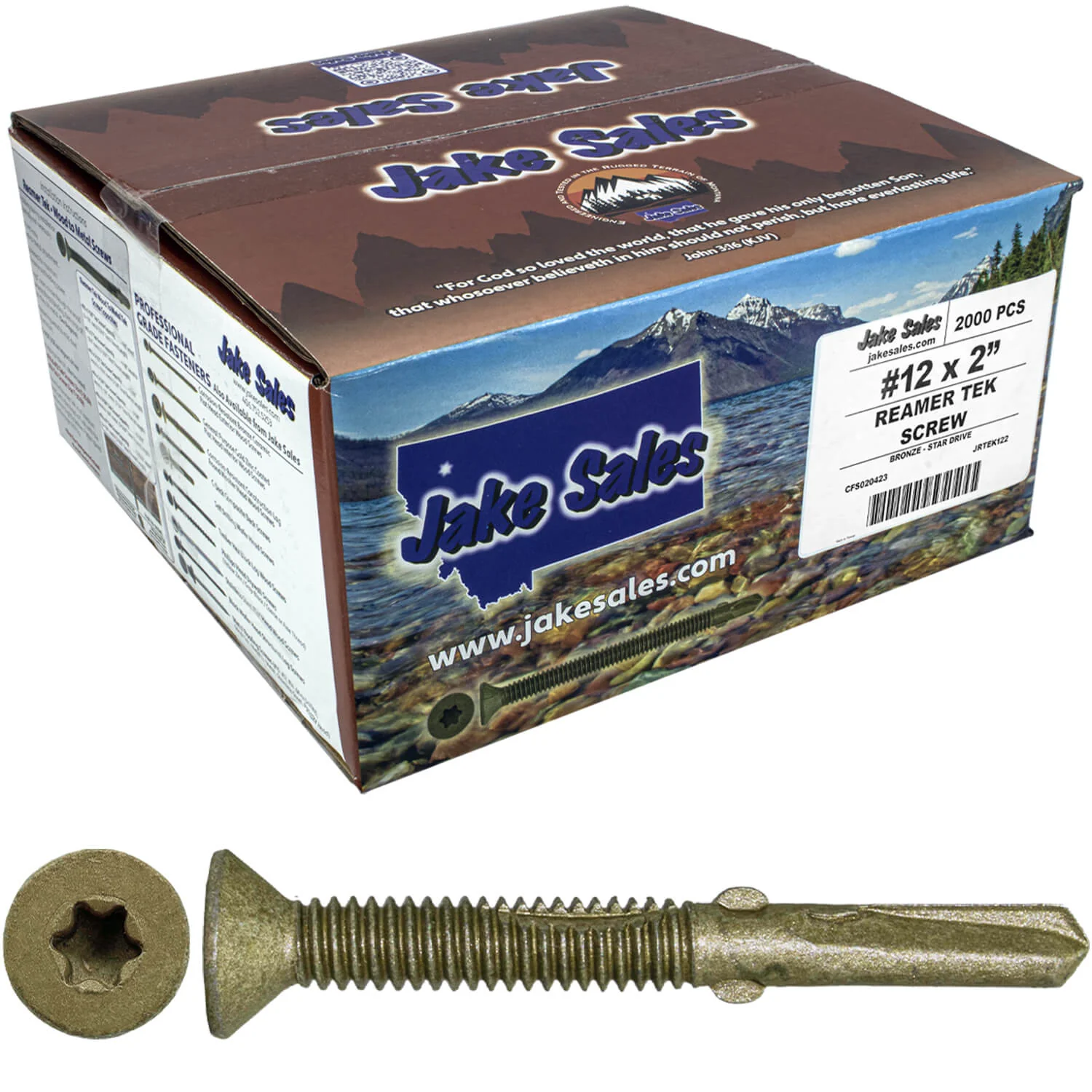

| 12 x 2" - Full Box | 13/16" | 3/16" | T30 |
| 12 x 2-1/2" - 1 Pound | 1-1/8" | 3/16" | T30 |
| 12 x 2-1/2" - 5 Pounds | 1-1/8" | 3/16" | T30 |

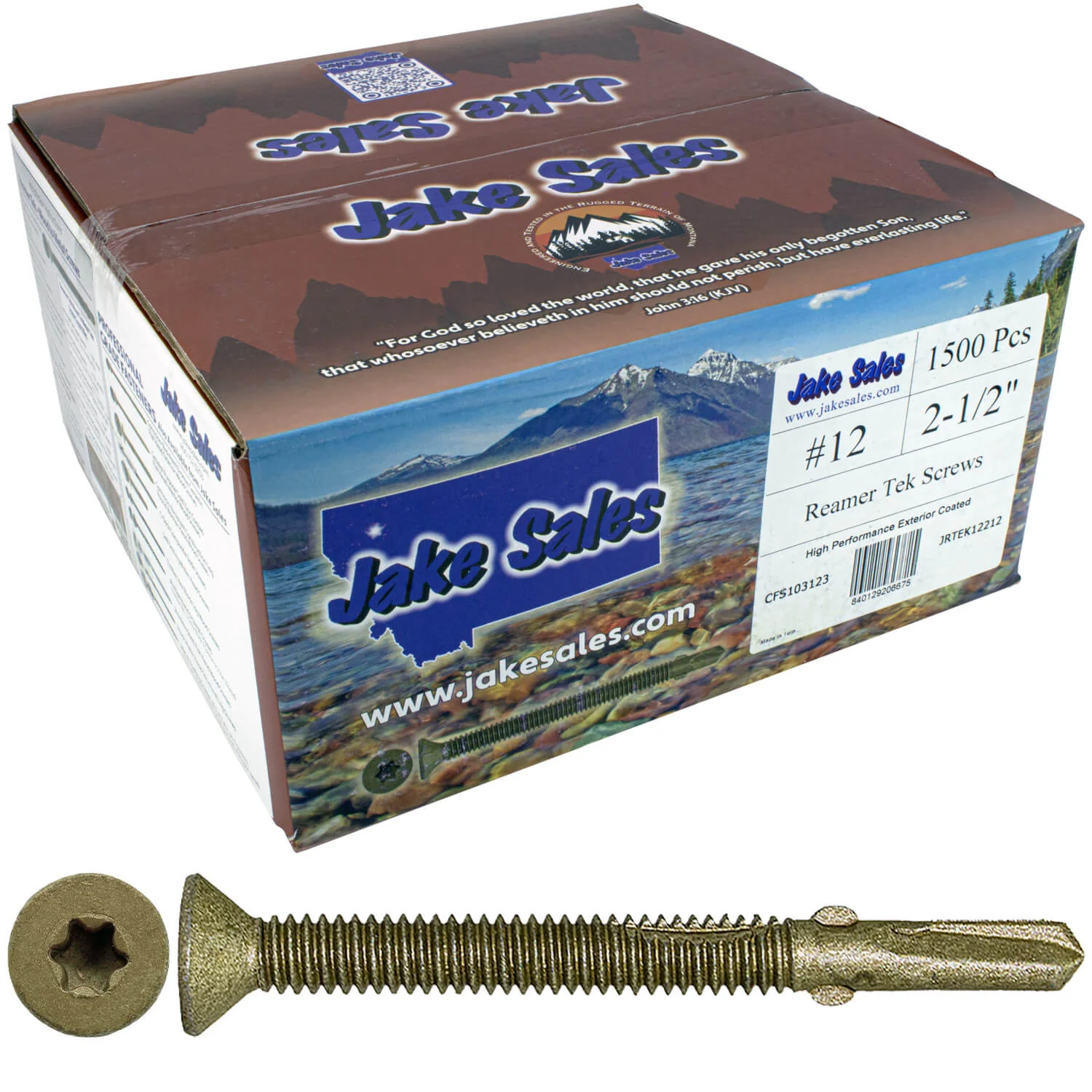

| 12 x 2-1/2" - Full Box | 1-1/8" | 3/16" | T30 |

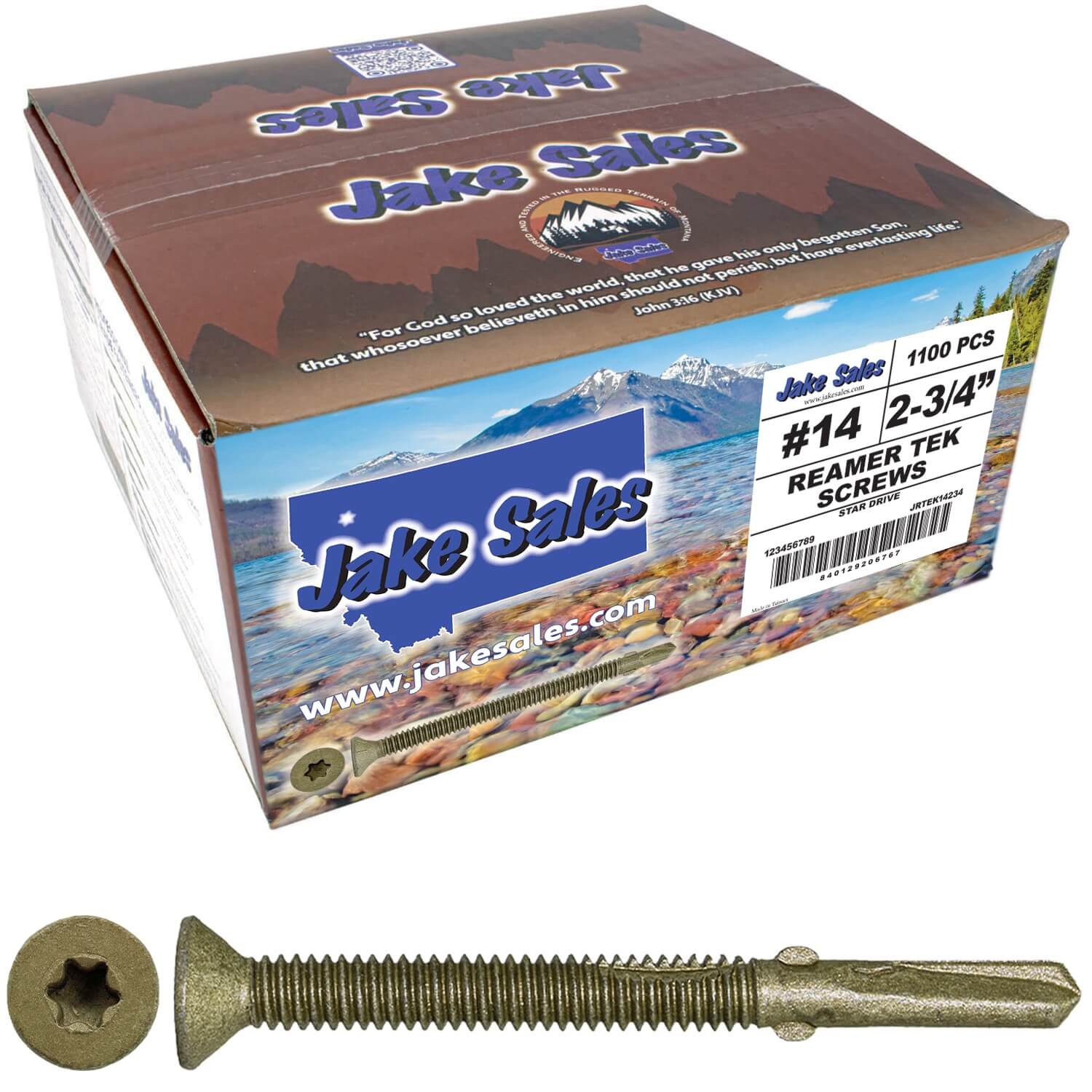

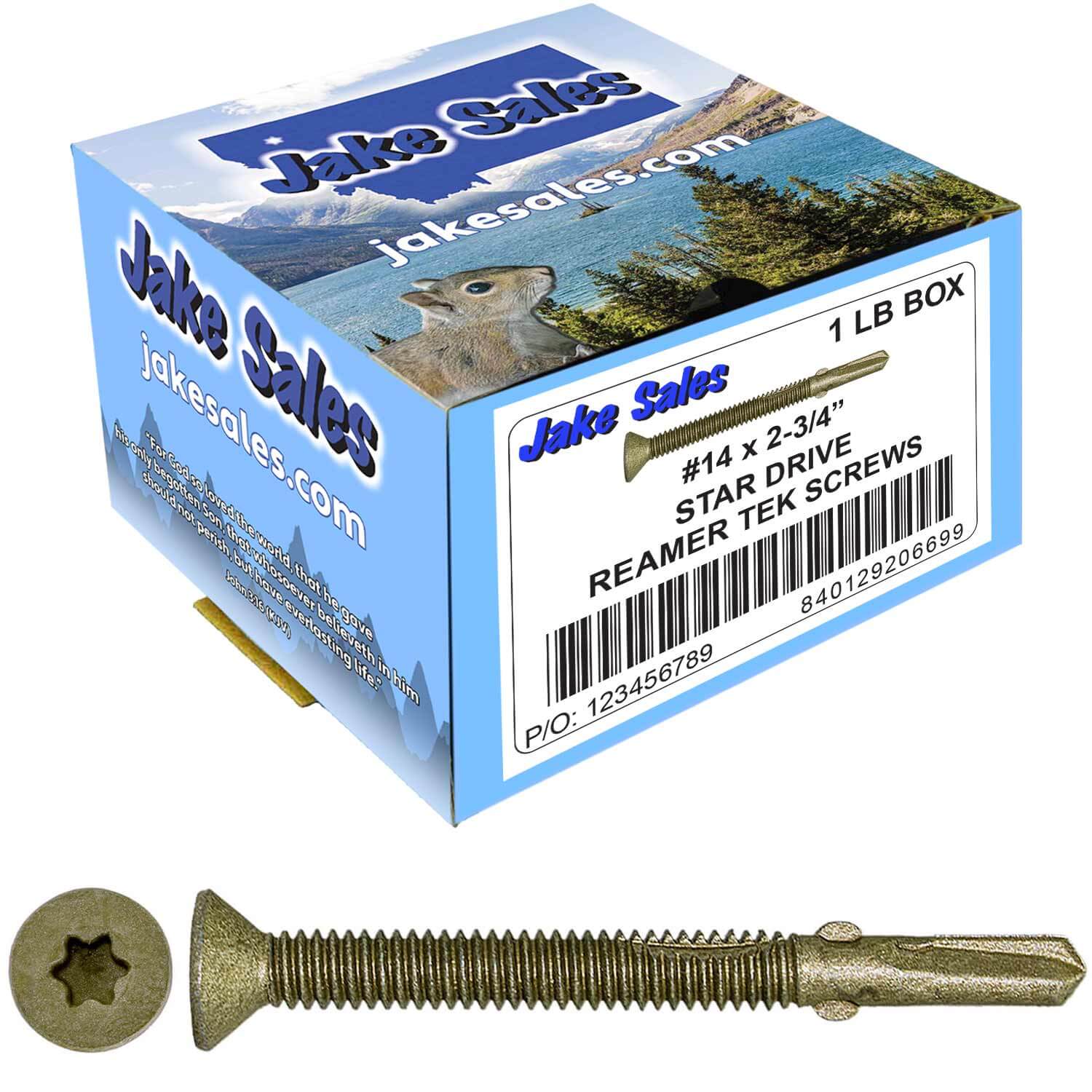

| 14 x 2-3/4 - 1 Pound | 1-1/2" | 1/4" | T30 |

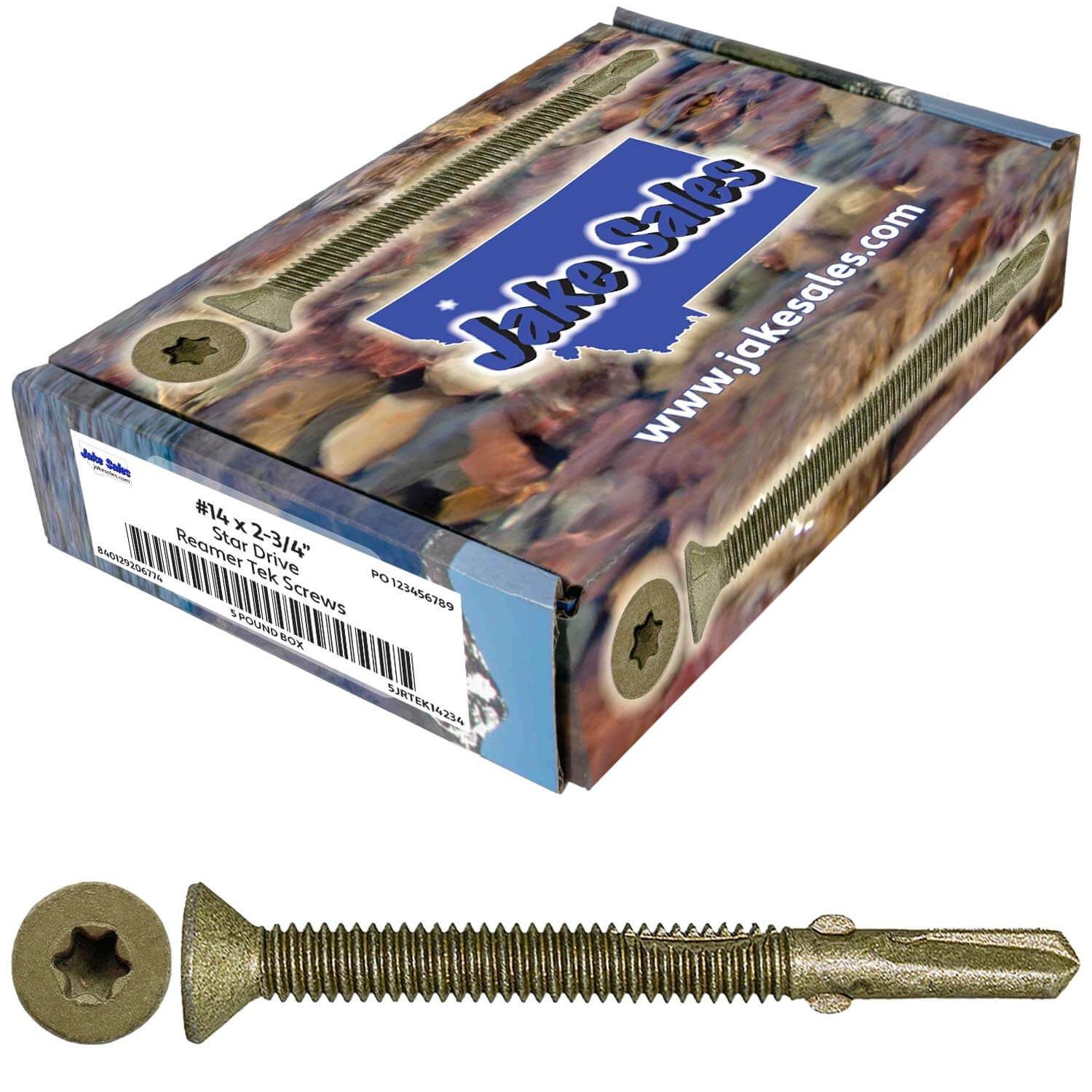

| 14 x 2-3/4" - 5 Pounds | 1-1/2" | 1/4" | T30 |
| 14 x 2-3/4" - Full Box | 1-1/2" | 1/4" | T30 |

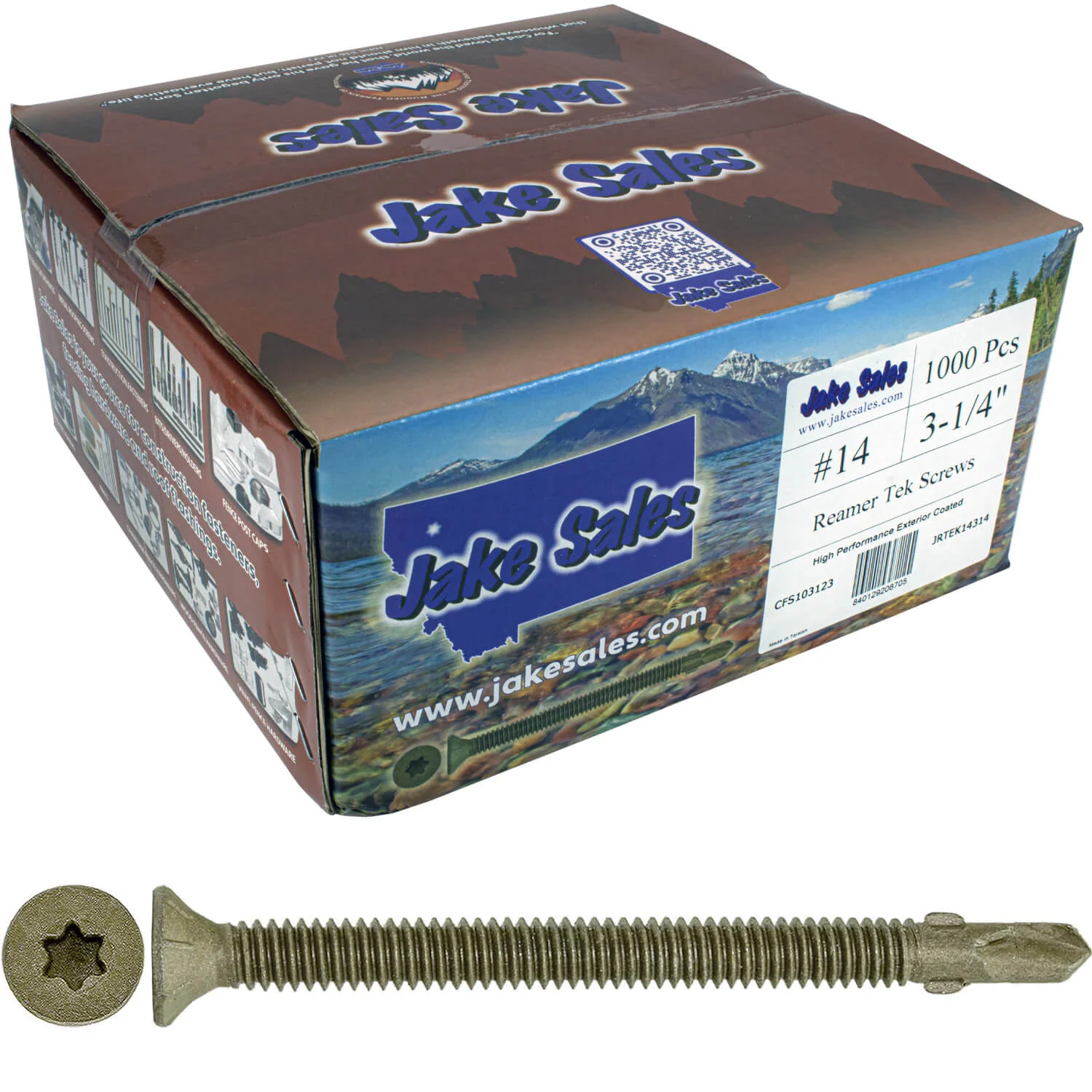

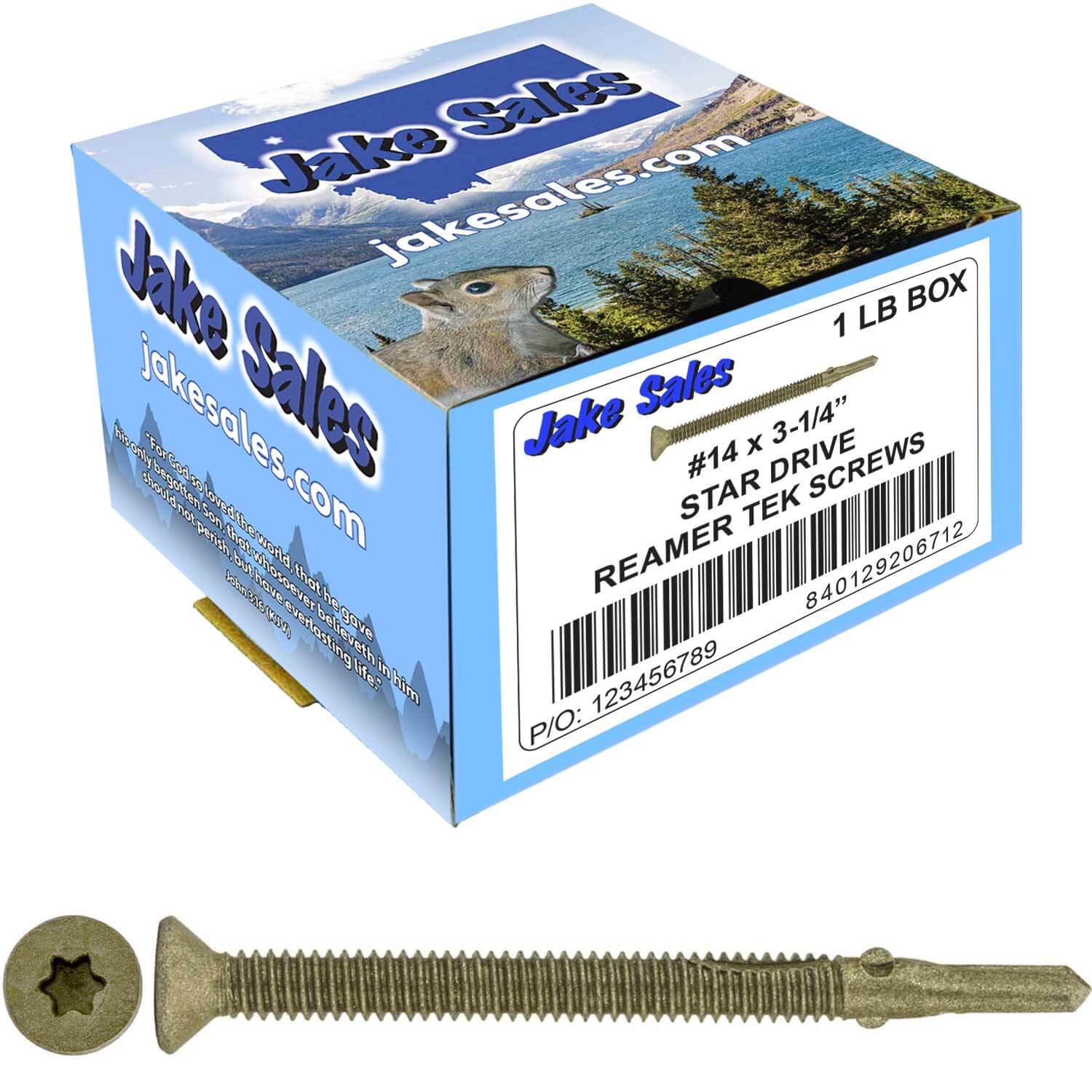

| 14 x 3-1/4" - 1 Pound | 2-1/8" | 1/4" | T30 |
| 14 x 3-1/4" - 5 Pounds | 2-1/8" | 1/4" | T30 |
| 14 x 3-1/4" - Full Box | 2-1/8" | 1/4" | T30 |

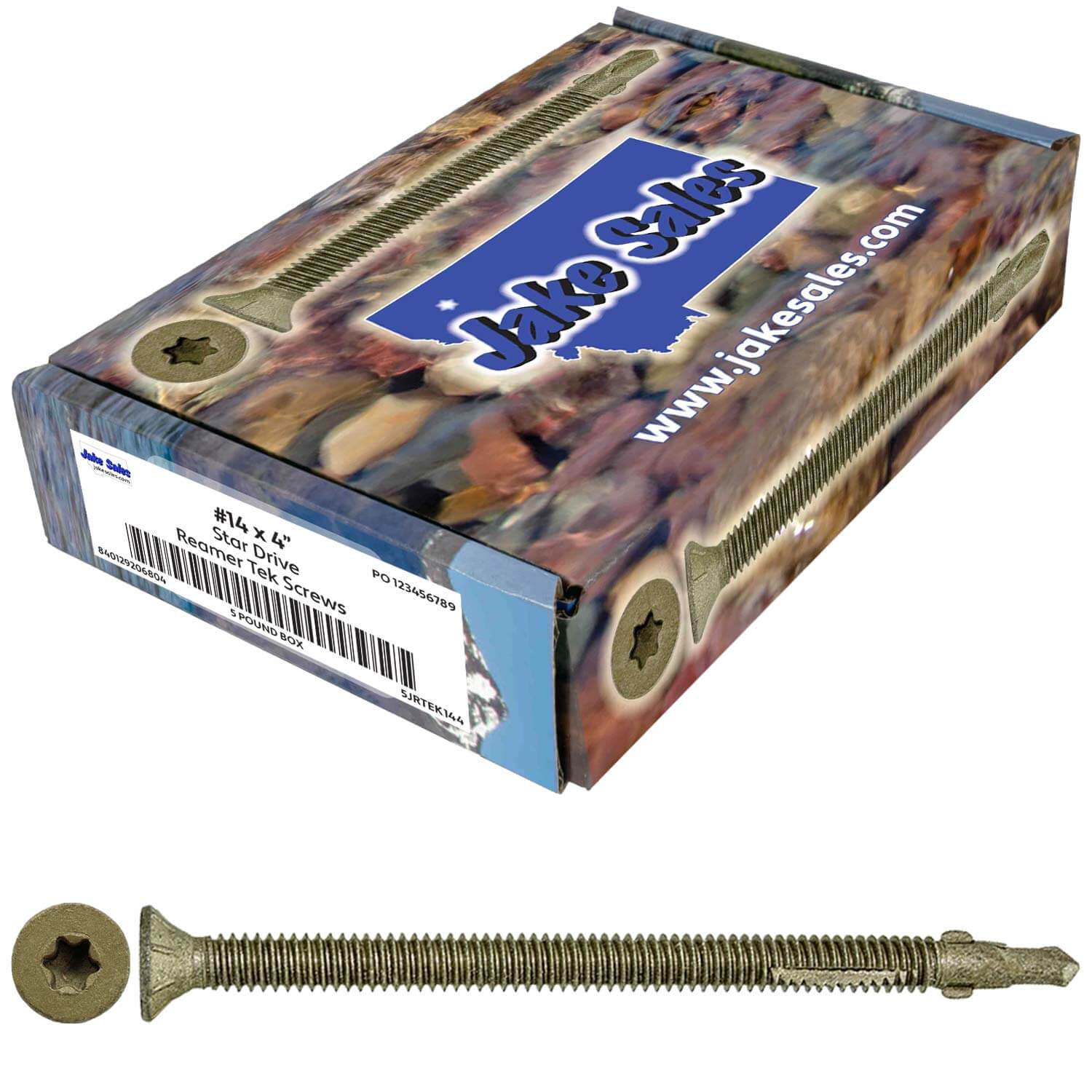

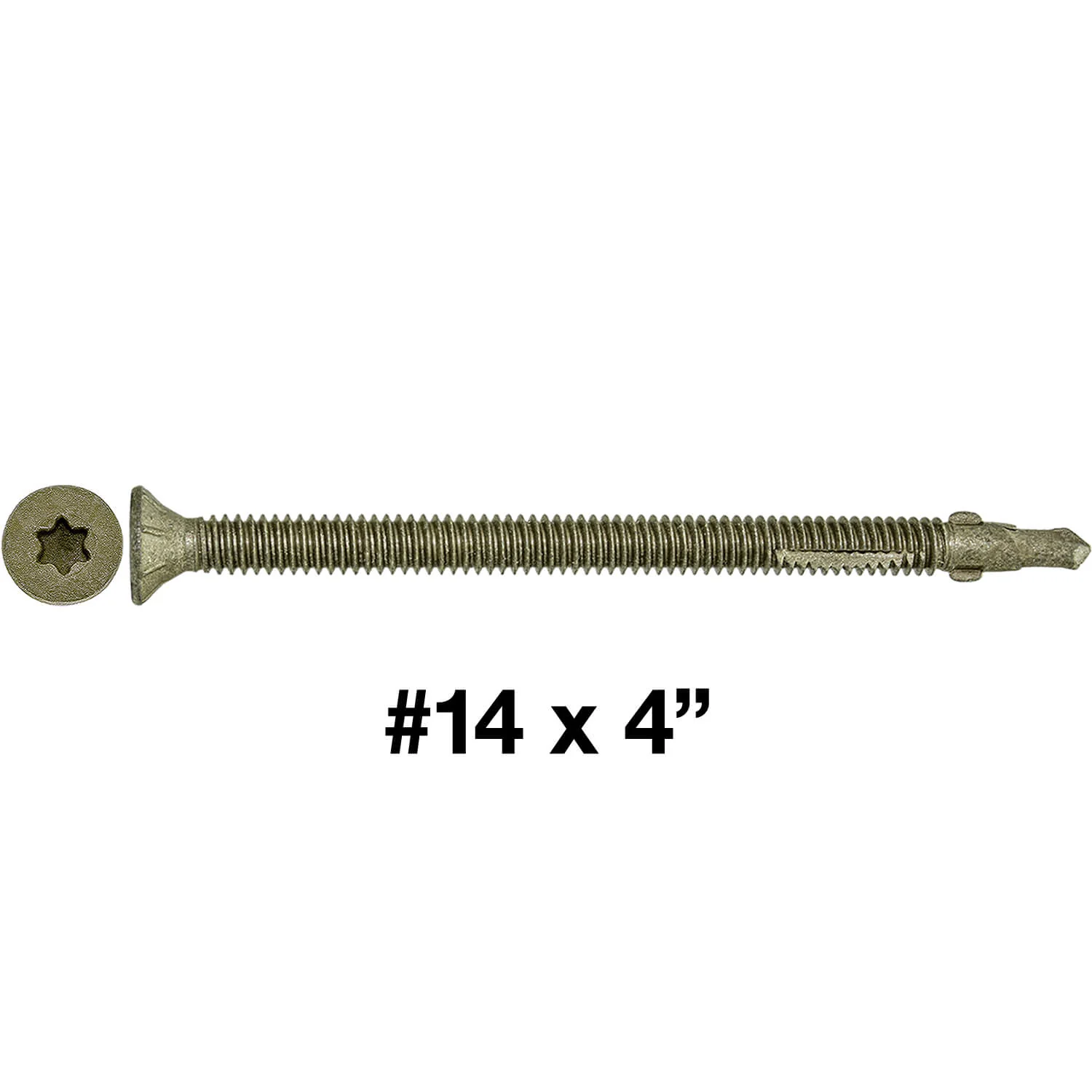

| 14 x 4" - 1 Pound | 2-7/8" | 1/4" | T30 |
| 14 x 4" - 5 Pounds | 2-7/8" | 1/4" | T30 |
| 14 x 4" - Full Box | 2-7/8" | 1/4" | T30 |
Original: $30.95
-65%$30.95
$10.83More Images
