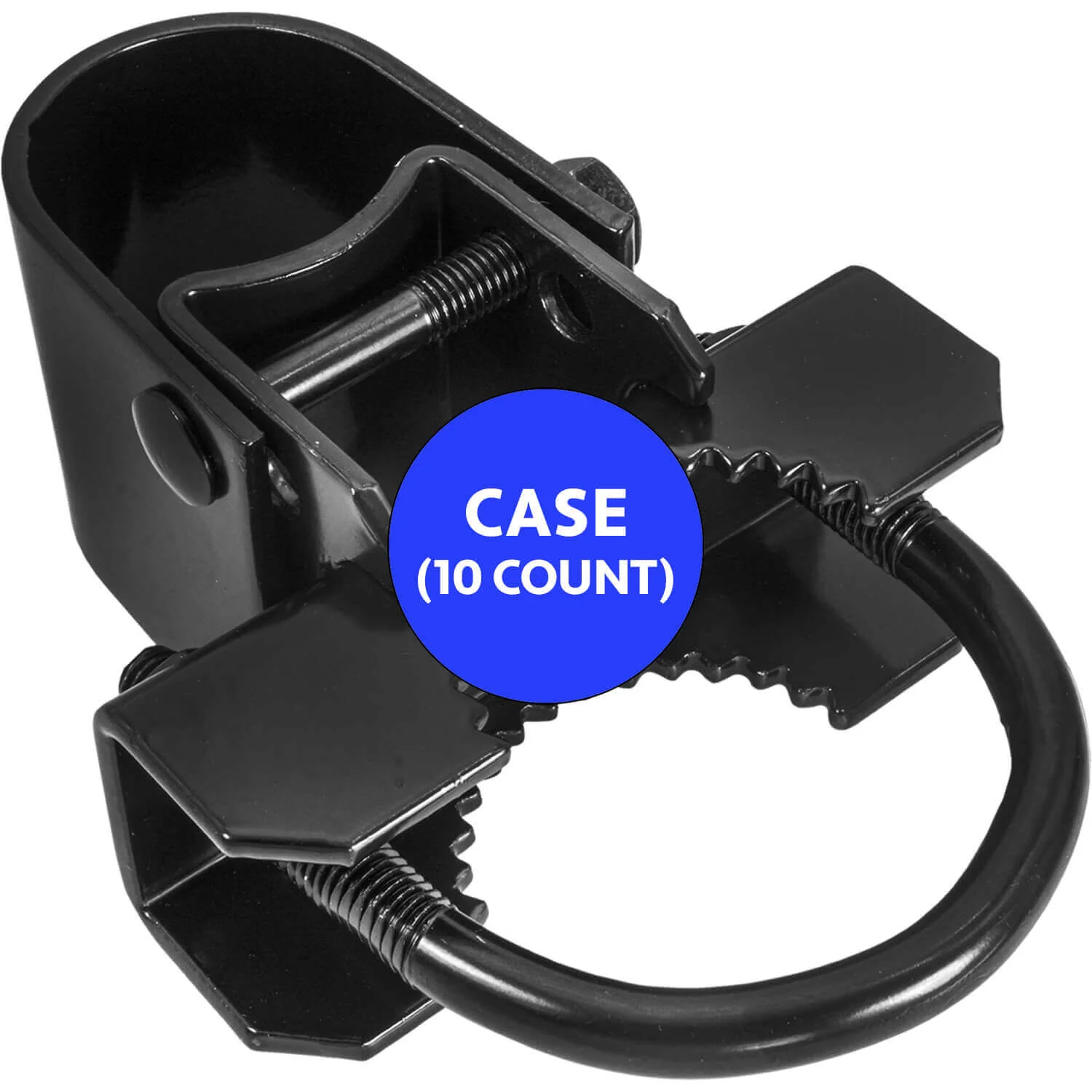

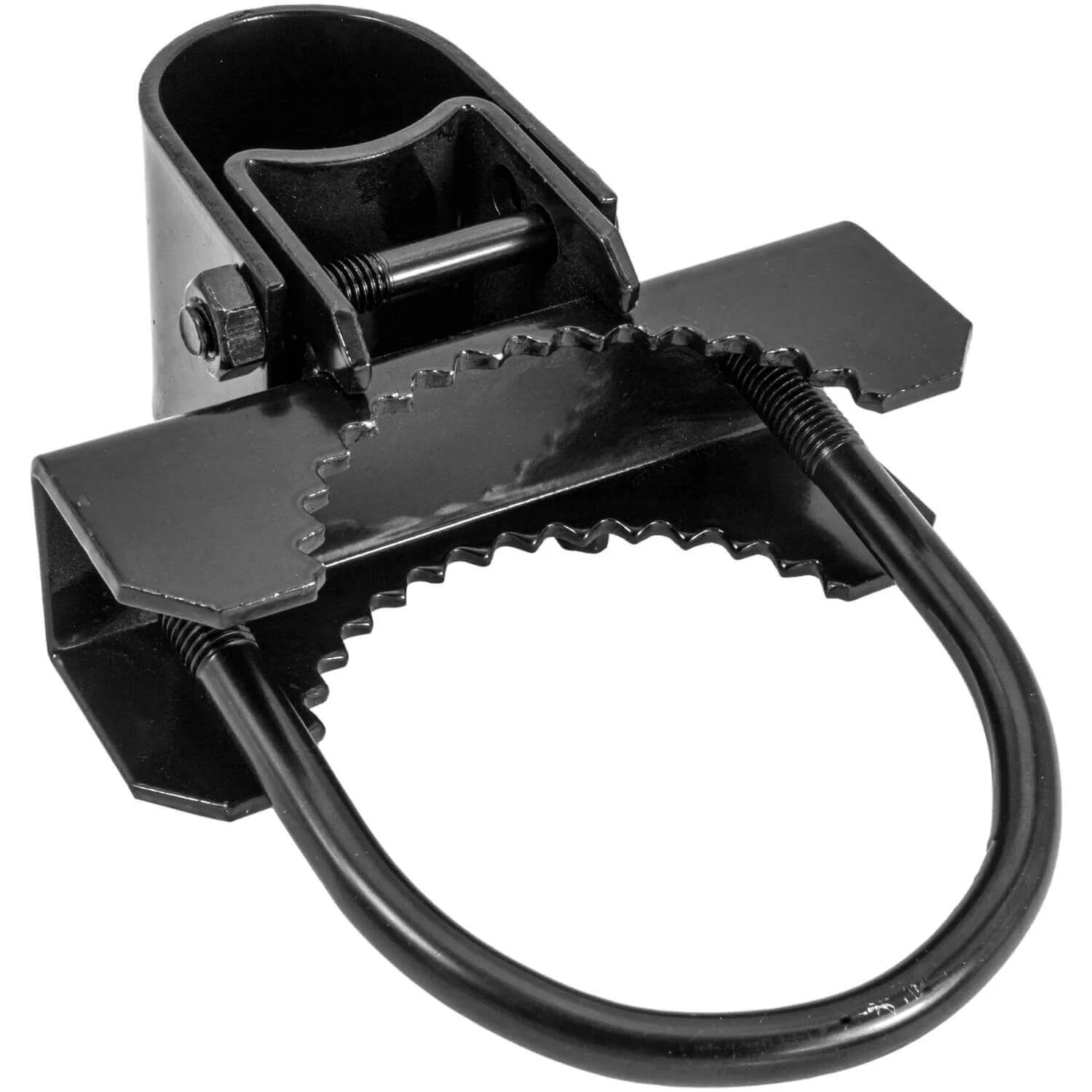

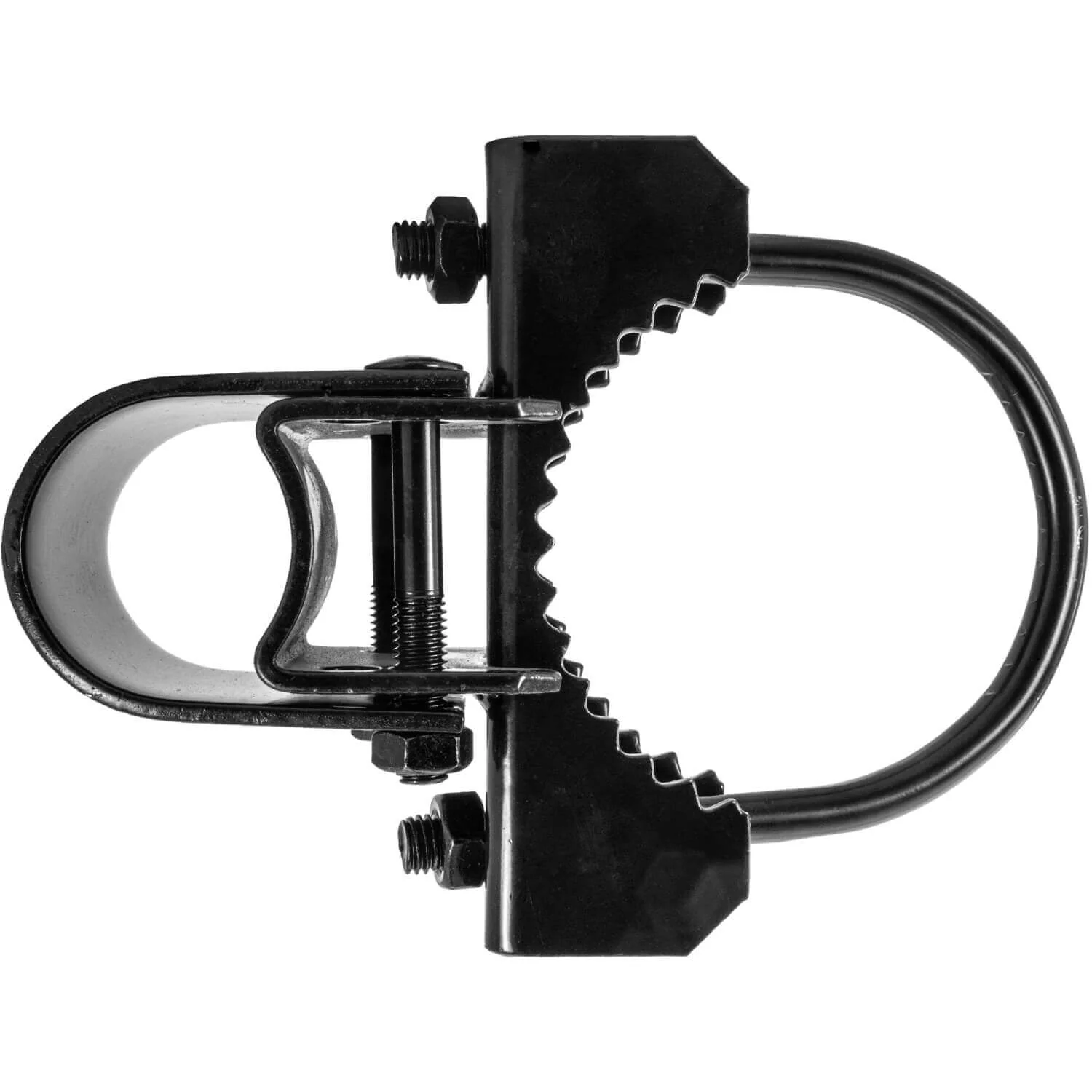

BLACK BULL DOG GATE HINGE - Commercial Heavy Duty - Chain Link Fence Gate Hinge

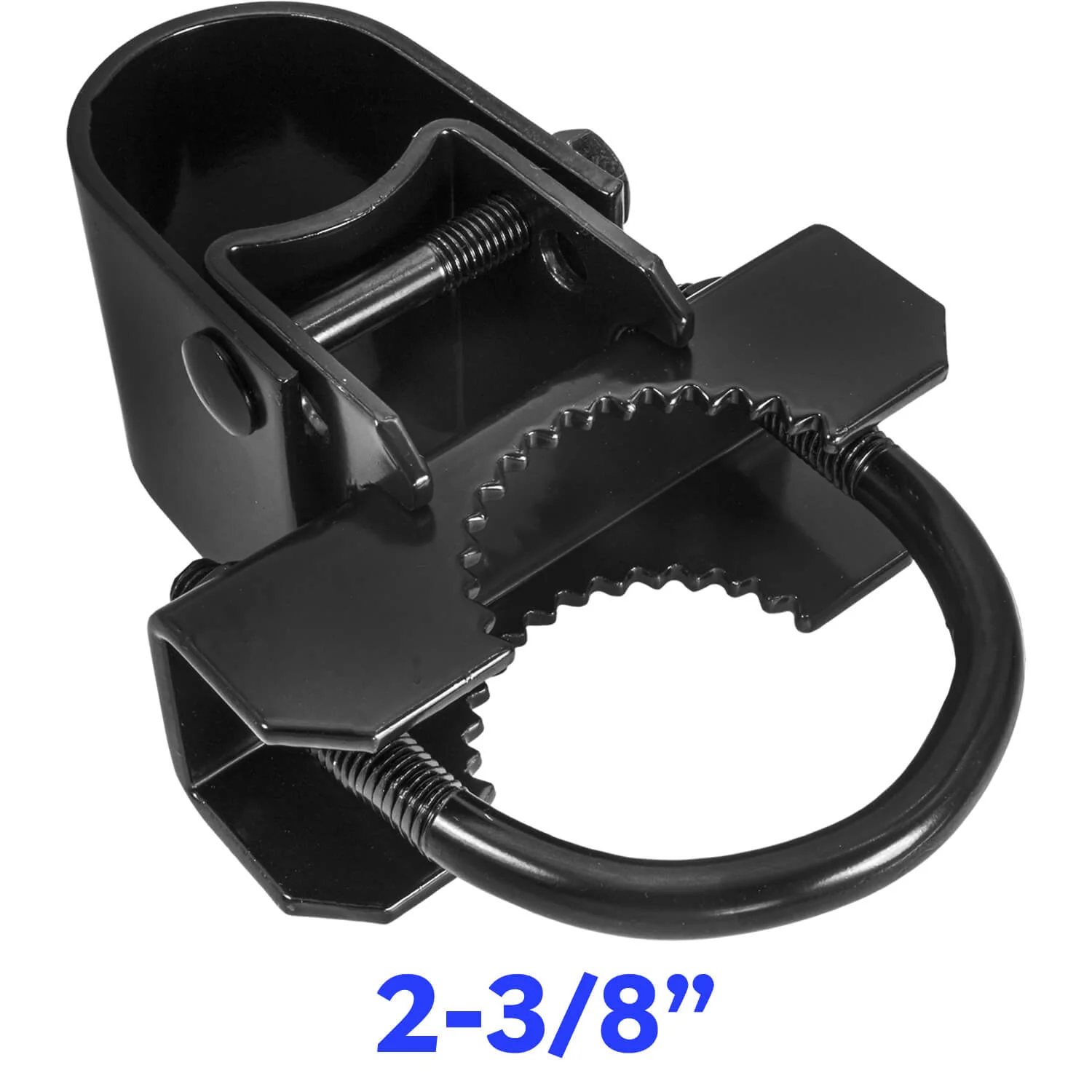

2-3/8" Chain Link Fence Gate Post "Bull Dog" Hinge

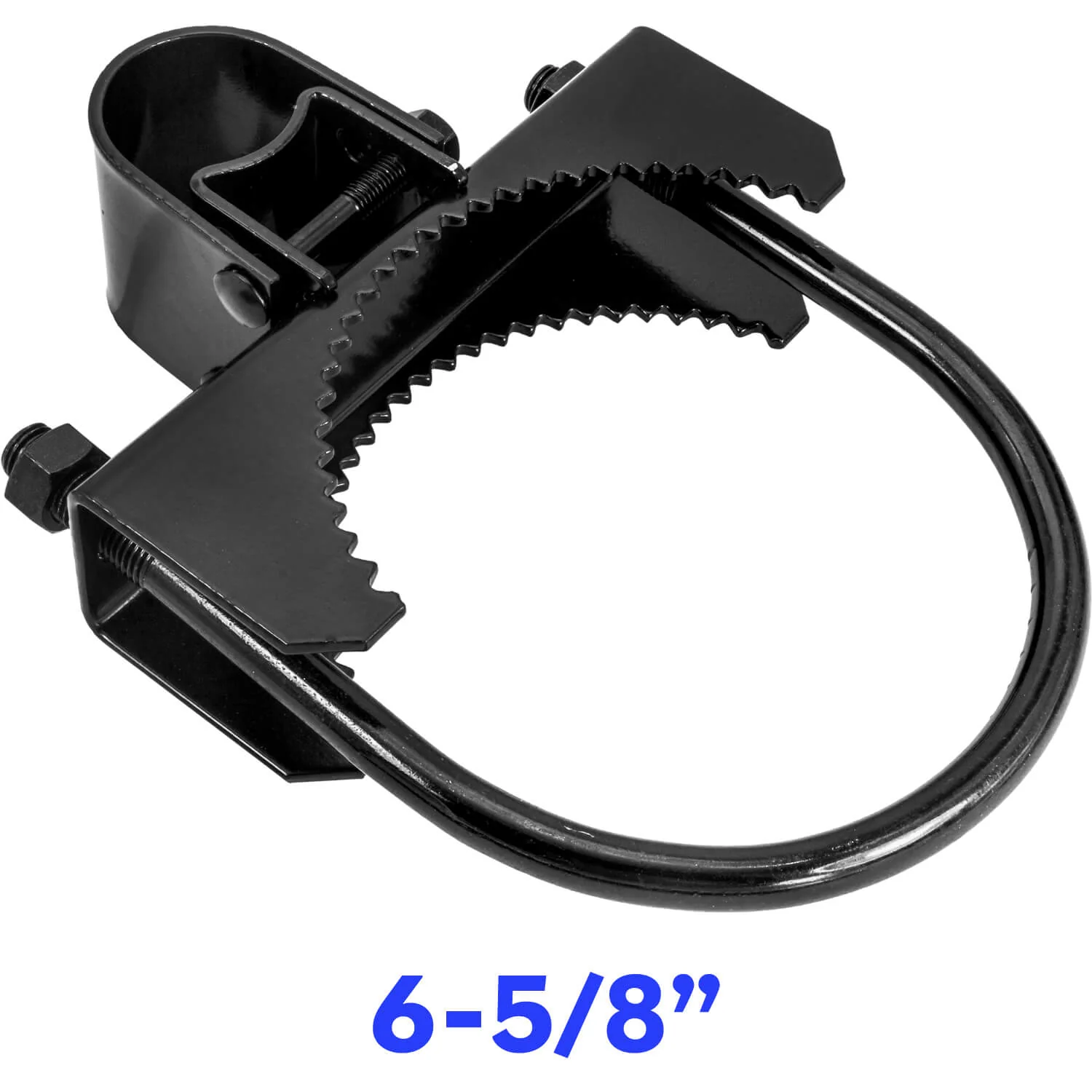

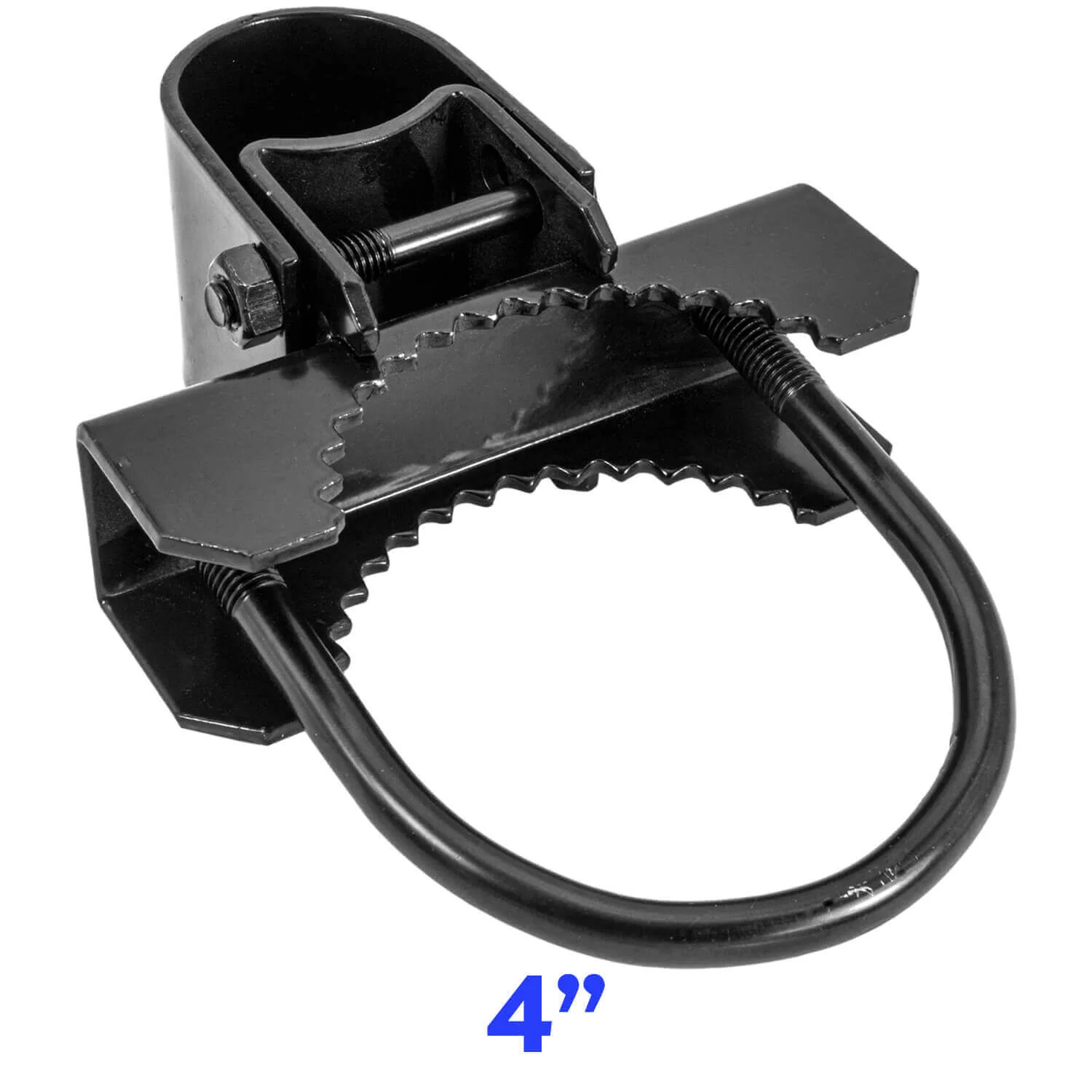

✔Chain Link Fence Gate Post Hinge for 2-3/8" - 2-7/8" - 4" , 4-1/2" and 6-5/8" Outside Diameter Pipe/Post
✔Adjust Gate Frame size by removing bolts and nuts holding gate frame clamp and rotate to correct size
✔Gate frame clamp will still be somewhat loose on Gate Frame, this is normal

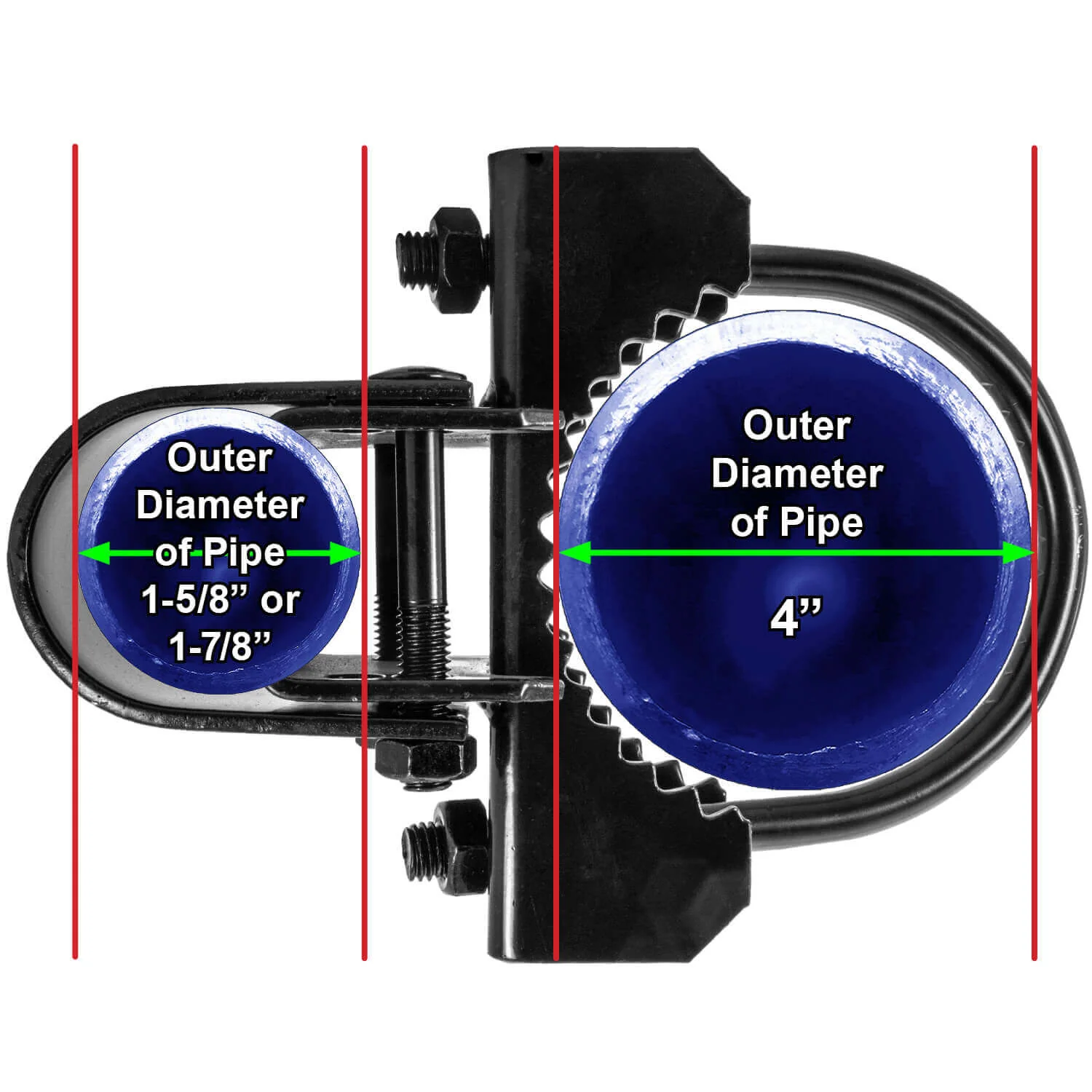

✔Measurements are based on "outside diameter" of both Gate Frame and Gate Post


Chain Link Fence Gate Post "Bull Dog" Hinge

Gate Hinge is Made of Galvanized Steel to Prevent Rust and Corrosion. Commercial Heavy Duty Grade Hinge Pivots 95 Degrees for Easy Access Through Fence Gate. Gate Hinge Nuts/Bolts are included With This Commercial Grade Heavy Duty Fence Gate Hinge.

Installation Instructions  Available Here

Product Post Size / Link	Adjustable Frame Size	Product Material
2-3/8" Single	1-5/8" to 1-7/8"	Galvanized Steel
2-7/8" Single	1-5/8" to 1-7/8"	Galvanized Steel
3-1/2" Single	1-5/8" to 1-7/8"	Galvanized Steel
4" Single	1-5/8" to 1-7/8"	Galvanized Steel
4-1/2" Single	1-5/8" to 1-7/8"	Galvanized Steel
6-5/8" Single	1-5/8" to 1-7/8"	Galvanized Steel
